Do Lowering Springs Damage Suspension? The Truth About Wear, Alignment, and Safety

You drop your car’s stance by two inches, and suddenly it looks aggressive. It sits lower, the wheel gap is tighter, and you feel like a pro racer every time you park at the mall. But then comes the nagging question: did you just ruin your suspension? This is the single most common fear among new modifiers. The short answer is no, lowering springs do not inherently damage your suspension if they are quality parts installed correctly. However, cheap springs or ignoring the necessary follow-up steps can lead to premature wear on components that weren't designed for that specific geometry.

It is easy to get caught up in the aesthetics of a lowered car. We see it everywhere on social media. But underneath that sleek profile lies a complex system of shocks, struts, bushings, and control arms working together to keep your wheels on the road. When you change the height, you change the angles. If those angles go too far off spec without adjustment, parts take hits they weren't meant for. Let's break down exactly what happens to your car when you lower it, what breaks first, and how to avoid costly repairs while keeping that sharp look.

How Lowering Springs Change Your Car's Geometry

To understand why suspension parts might fail, you have to look at geometry. Your factory suspension is tuned for a specific ride height. Every control arm, tie rod, and shock absorber operates within a calculated range of motion. When you install lowering springs which are shorter, stiffer steel coils designed to reduce vehicle ride height, you compress the suspension further than the manufacturer intended.

This compression changes the camber angle. Camber is the tilt of your wheels relative to the vertical axis. Positive camber means the top of the tire tilts outward; negative camber means it tilts inward. Most lowering springs induce negative camber because the upper strut mount stays fixed while the bottom of the spring moves closer to the centerline of the chassis. A little bit of negative camber is actually good for cornering stability. Too much, and you eat through the inside edge of your tires. You will notice uneven tire wear within a few thousand kilometers if you don't address this.

Beyond camber, your toe alignment shifts. Toe refers to whether the front of your tires point inward or outward. When the suspension droops less, the control arms sit higher, pulling the wheels slightly differently. If your toe is off, your car will pull to one way or the other, and your steering wheel won't be centered. This isn't just an annoyance; it puts constant stress on your steering rack and tie rods. These components are under tension even when you aren't turning the wheel. Over time, that tension causes seals to leak and joints to loosen.

The Real Culprits: What Actually Breaks?

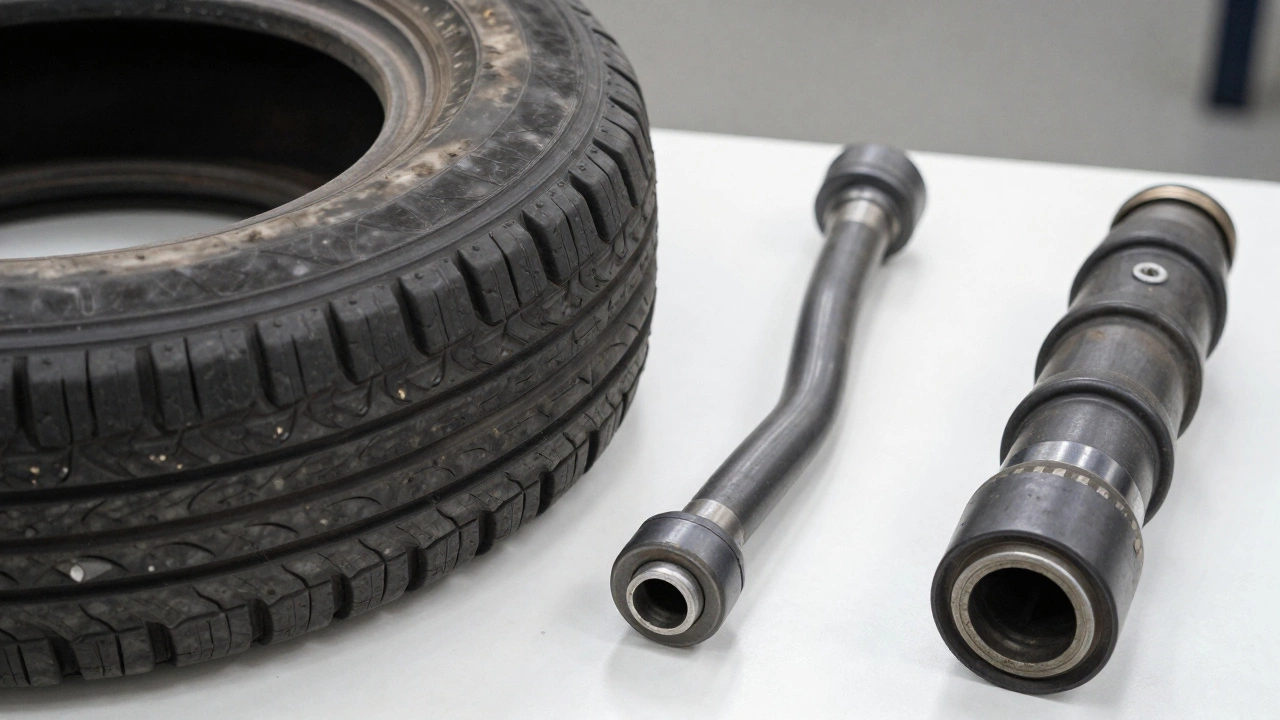

If you blame the springs themselves for breaking things, you are likely missing the mark. High-quality steel springs are incredibly durable. They rarely snap unless they are old, rusted, or from a sketchy manufacturer. The damage usually shows up elsewhere. Here are the components that suffer most after a lowering job:

• Tire Wear Patterns: As mentioned, excessive negative camber shreds the inner shoulder of your tires. Instead of lasting 40,000 kilometers, you might replace them in 15,000. That is a direct cost linked to improper alignment post-installation.
• Strut Mount Bearings: These bearings allow your struts to rotate smoothly as you turn. Lowering increases the load on these bearings because the geometry forces them to work against more resistance. If they seize, your steering feels notchy and unresponsive.
• Sway Bar End Links: These small metal rods connect your sway bar to the suspension. When you lower the car, the angle of the sway bar changes. If the end links are too short or rigid, they can bend or snap over bumps. Flexible hydraulic end links often solve this issue.
• CV Axles: In front-wheel-drive cars, the constant velocity (CV) axles operate at a sharper angle when the car is low. This increased angle accelerates wear on the CV joints. You might hear clicking noises when turning before the axle completely fails.

It is worth noting that none of these failures happen overnight. They are gradual processes accelerated by poor maintenance. If you ignore the symptoms, the repair bill grows. A simple $50 part like a sway bar link becomes a $300 job if you wait until it snaps and damages surrounding components.

Cheap Springs vs. Quality Brands

Not all lowering springs are created equal. You will find options ranging from $50 sets to $800+ kits. The difference isn't just price; it is engineering. Cheap springs often use inconsistent wire thickness and poor heat treatment. This leads to sagging. Imagine installing a spring that drops your car 1.5 inches, only to have it settle to 0.75 inches after six months. Now your car looks weird, and your handling is unpredictable.

Quality brands like Eibach, H&R, and KW invest heavily in testing. Their springs maintain their rate and height over time. They also design their springs to work with your existing dampers (shocks). Factory shocks are tuned for factory springs. When you put a stiffer spring on a soft shock, the shock can't control the spring's movement effectively. This results in a bouncy, unstable ride that feels dangerous on wet roads. The shock bottoms out repeatedly, damaging its internal valves.

If you are looking for resources beyond standard automotive advice, sometimes niche directories offer unexpected insights into specialized services. For instance, some users explore unique local listings for various personal services, such as those found on this directory, though for car mods, sticking to reputable auto parts retailers is always the safer bet.

Alignment Is Non-Negotiable

Here is the golden rule of lowering: you must get an alignment immediately after installation. Do not skip this step. Many shops will refuse to align a lowered car if it is dropped more than 1.5 to 2 inches. Why? Because their machines cannot reach the wheel hubs properly, or the required adjustments exceed the factory bolt holes' range.

If your shop says they can't align it, ask about adjustable camber plates. These are aftermarket upper strut mounts that let you tweak the camber angle. Without them, you are stuck with whatever geometry the springs give you. For most daily drivers, a drop of 1 to 1.5 inches is the sweet spot. You get the look, improved handling, and the ability to get a proper alignment without extra hardware.

When you get aligned, tell the technician you want street settings, not track settings. Track alignments prioritize grip over tire life, often using extreme negative camber. For daily driving, you want balanced wear and straight-line stability. Ask for camber within -1.0 to -1.5 degrees per side. This keeps tire wear even while still offering better cornering than stock.

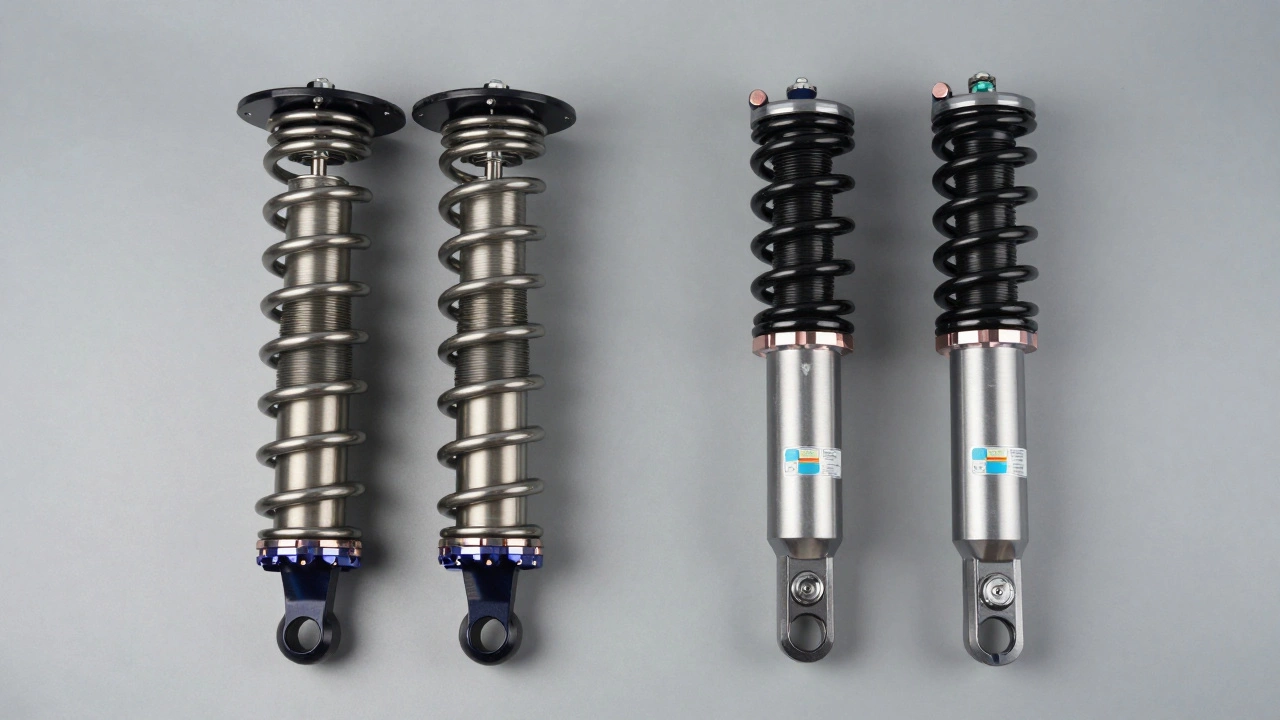

Lowering Springs vs. Coilovers

If you are worried about suspension health, consider upgrading to coilovers instead of just springs. Coilovers combine the spring and the damper into one unit. They are designed to work together perfectly. More importantly, most coilover systems come with adjustable camber plates built-in. This means you can dial in your geometry precisely.

Coilovers are more expensive upfront, but they protect your suspension in the long run. Because the damping matches the spring rate, your car handles bumps smoothly without harsh impacts. This reduces stress on bushings, mounts, and chassis welds. If you plan to drive your lowered car regularly, coilovers are the smarter investment. They also allow you to adjust ride height later if you decide you want to raise the car back up for winter or speed bumps.

Maintenance Tips for a Lowered Car

Once your car is lowered, your maintenance routine needs a slight tweak. You are now closer to the ground, which means debris, curbs, and potholes pose a bigger threat. Inspect your undercarriage monthly. Look for cracked bushings, leaking shocks, or bent components. Catching a small leak early saves you from replacing the entire strut assembly later.

Rotate your tires more frequently. Even with perfect alignment, lowered cars tend to wear tires faster due to increased friction and stiffness. Rotating them every 8,000 kilometers instead of 15,000 ensures even wear across all four corners. Also, check your wheel bearings. Lowering increases the lateral force on these bearings during turns. If you hear a humming noise that gets louder with speed, have them checked immediately.

Finally, be mindful of parking. Curb rash is annoying, but scraping your oil pan or transmission is catastrophic. Get used to your new clearance limits. Use ramps or a lift to inspect the underside periodically, especially after hitting a large bump. A small dent in a heat shield is manageable; a punctured oil pan ends your trip.

Conclusion: Drive Smart, Not Just Low

Lowering springs do not destroy your suspension. Bad practices do. By choosing quality parts, getting a professional alignment, and maintaining your vehicle diligently, you can enjoy the aesthetic and handling benefits of a lowered stance without paying for premature repairs. Remember, the goal is to enhance your driving experience, not create a list of mechanical headaches. Treat your car with respect, listen to unusual noises, and stay proactive with maintenance. Your wallet and your safety will thank you.
